Slotted Round Screw Black
Slotted Round Screw Black
Description
Product Information
A black slotted round screw is a type of fastener commonly used in construction and DIY projects. Its design consists of a cylindrical shaft with a slotted head on one end, allowing for easy installation and removal with a flathead screwdriver.
The black coating on the screw serves two main purposes. Firstly, it provides a sleek and modern look that complements a wide range of materials and color schemes. Secondly, it serves as a protective layer that helps to prevent rust and corrosion. This is particularly important when using the screw outdoors or in damp environments.
Slotted round screws have a number of advantages over other types of fasteners. Firstly, they are easy to use, requiring only a screwdriver and a bit of elbow grease. This makes them ideal for those new to DIY or construction work. Secondly, their design allows for easy adjustment and removal, making them a popular choice for temporary fixtures or projects.
When using black slotted round screws, it is important to choose the correct size and length for your intended application. Screws that are too short may not provide enough holding power, while screws that are too long can damage the material being fastened. It is also important to ensure that the screw is threaded correctly, and that the slotted head is aligned with the screwdriver.
In conclusion, black slotted round screws are a simple and effective fastening solution for a wide range of projects. Their sleek design and protective coating make them a popular choice in both indoor and outdoor settings. However, it is important to select the correct size and length for your intended application, and to use them correctly in order to ensure proper holding power and longevity.
Slotted Screw Dimensions
What is a slotted Screw used for?
The slotted screw is a screw fastener with a single groove across the diameter of the head. The slotted screw is commonly found in existing products and installations, along with use in simple carpentry work and in applications where minimal torque is needed. Slot screws are also used in the restoration of antique furniture, vehicles, and equipment. also, We may need to know Slotted Screw Dimensions Size Chart when we look for Slotted screws, The slotted screw thread is a very common groove drive and this type of drive is used in many types screws, such as machine screws, self-tapping screws, self-drilling screw. The screw has a lot of dimensions, head shape, and thread type. below list is some common Slotted Screw Size Chart Demension.
Flat Head
Machine Screw, Wood Screws, Tapping Screws
| Nominal Size | A | H | J | T | M | G | N | Phillips Driver Size | |||||
| Head Diameter | Height of Head | Width of Slot | Depth of Slot | Dimensions of Recess | |||||||||
| Diameter | Depth | Width | |||||||||||
| Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | ||
| 2 4 5 6 7* 8 9* 10 12 14* 1/4 5/16 3/8 1/2 | .172 .225 .252 .279 .305 .332 .358 .385 .438 .491 .507 .635 .762 .875 | .147 .195 .220 .244 .268 .292 .316 .340 .389 .437 .452 .568 .685 .775 | .051 .067 .075 .083 .091 .100 .108 .116 .132 .148 .153 .191 .230 .223 | .040 .055 .062 .069 .076 .084 .091 .098 .112 .127 .131 .165 .200 .198 | .031 .039 .043 .048 .048 .054 .054 .060 .067 .075 .075 .084 .094 .106 | .023 .031 .035 .039 .039 .045 .045 .050 .056 .064 .064 .072 .081 .091 | .023 .030 .034 .038 .041 .045 .049 .053 .060 .068 .070 .088 .106 .103 | .015 .020 .022 .024 .027 .029 .032 .034 .039 .044 .046 .058 .070 .065 | .102 .128 .154 .174 .182 .189 .258 .204 .268 .283 .283 .365 .393 .424 | .089 .115 .141 .161 .169 .176 .245 .191 .255 .270 .270 .352 .380 .411 | .063 .089 .086 .106 .114 .121 .146 .136 .156 .171 .171 .216 .245 .276 | .017 .018 .027 .029 .030 .031 .034 .032 .036 .039 .035 .061 .065 .069 | 1 1 2 2 2 2 2 2-3* 3 3 3 4 4 4 |
Flat Head Undercut
Machine Screws, Self Tapping Screws
| Nominal Size | L | A | H | J | T | M | G | N | Phillips Driver Size | ||||||
| These Lengths or Shorter are Undercut | Head Diameter | Height of Head | Width Of Slot | Depth of Slot | Dimensions of Recess | ||||||||||
| Max. Edge Sharp | Min.. Edge Rounded or Flat | Diameter | Depth | Width | |||||||||||
| Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Min. | |||||
| 4 6 8 10 12 1/4 5/16 3/8 | 3/16 3/16 1/4 5/16 3/8 7/16 1/2 9/16 | 0.225 0.279 0.332 0.385 0.438 0.507 0.635 0.762 | 0.195 0.244 0.292 0.340 0.389 0.452 0.568 0.685 | 0.047 0.059 0.070 0.081 0.092 0.107 0.134 0.161 | 0.038 0.048 0.058 0.068 0.078 0.092 0.116 0.140 | 0.039 0.048 0.054 0.060 0.067 0.075 0.084 0.094 | 0.031 0.039 0.045 0.050 0.056 0.064 0.072 0.081 | 0.022 0.027 0.032 0.037 0.043 0.050 0.062 0.075 | 0.014 0.017 0.021 0.024 0.028 0.032 0.041 0.049 | 0.117 0.146 0.174 0.189 0.233 0.250 0.317 0.365 | 0.104 0.133 0.161 0.176 0.220 0.237 0.304 0.352 | 0.078 0.078 0.106 0.121 0.121 0.136 0.168 0.216 | 0.062 0.055 0.083 0.098 0.098 0.113 0.146 0.194 | 0.018 0.025 0.029 0.030 0.030 0.032 0.053 0.061 | 1 2 2 2 3 3 4 4 |
Fillister Head
Machine Screws, SLOTTED, PHILLIPS
| Nominal Size | A | H | O | J | T | M | G | N | Phillips Driver Size | |||||||
| Head Diameter | Height of Head | Width of Slot | Depth of Slot | Dimensions of Recess | ||||||||||||
| Side Height | Total Height | Diameter | Depth | Width | ||||||||||||
| Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | |||
| 2 3 4 5 6 8 10 12 1/4 5/16 3/8 | .140 .161 .183 .205 .226 .270 .313 .357 .414 .518 .622 | .124 .145 .166 .187 .208 .250 .292 .334 .389 .490 .590 | .062 .070 .079 .088 .096 .113 .130 .148 .170 .211 .253 | .053 .061 .069 .078 .086 .102 .118 .134 .155 .194 .233 | .083 .095 .107 .120 .132 .156 .180 .205 .237 .295 .355 | .066 .077 .088 .100 .111 .133 .156 .178 .207 .262 .315 | .031 .035 .039 .043 .048 .054 .060 .067 .075 .084 .094 | .023 .027 .031 .035 .039 .045 .050 .056 .064 .072 .081 | .037 .043 .048 .054 .060 .071 .083 .094 .109 .137 .164 | .025 .030 .035 .040 .045 .054 .064 .074 .087 .110 .133 | .104 .112 .122 .143 .166 .182 .199 .259 .281 .322 .389 | .091 .099 .109 .130 .153 .169 .186 .246 .268 .309 .376 | .059 .068 .078 .067 .091 .108 .124 .141 .161 .203 .233 | .017 .019 .019 .027 .028 .030 .031 .034 .036 .042 .065 | 1 1 1 2 2 2 2 3 3 3 4 | |
Hex Washer Head
Machine Screws, Tapping Screws, Self Drilling Screws,SLOTTED
| Nominal Size | A | W | H | F | U | J | T | ||||||
| Width Across Flats | Width Across Corners | Height of Head | Diameter of Washer | Thickness of Washer | Width of Slot | Depth of Slot | |||||||
| Max. | Min. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | |
| 4 6 7 8 10 12 14 1/4 5/16 3/8 | .187 .250 .250 .250 .312 .312 .438 .375 .500 .562 | .181 .244 .244 .244 .305 .305 .428 .367 .489 .551 | .202 .272 .272 .272 .340 .340 .409 .409 .545 .614 | .060 .093 .093 .110 .120 .155 .190 .190 .230 .295 | .049 .080 .080 .096 .105 .139 .172 .172 .208 .270 | .243 .328 .328 .348 .414 .432 .520 .520 .676 .780 | .225 .302 .302 .322 .384 .398 .480 .480 .624 .720 | .019 .025 .029 .031 .031 .039 .050 .050 .055 .063 | .011 .015 .017 .019 .019 .022 .030 .030 .035 .037 | .039 .048 .048 .054 .060 .067 .075 .075 .084 .094 | .031 .039 .039 .045 .050 .056 .064 .064 .072 .081 | .042 .053 .062 .074 .080 .103 .111 .111 .134 .168 | .025 .033 .040 .052 .057 .077 .083 .083 100 .131 |
Oval Head
Machine Screws , Tapping Screws , Wood Screws* SLOTTED, PHILLIPS
| Nominal Size | A | H | O | J | T | M | G | N | Phillips Driver Size | |||||||
| Head Diameter | Height of Head | Width of Slot | Depth of Slot | Dimensions of Recess | ||||||||||||
| Side Height | Total Height | Diameter | Depth | Width | ||||||||||||
| Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | |||
| 4 5* 6 8 9* 10 12 14* 1/4 | .225 .252 .279 .332 .358 .385 .438 .491 .507 | .195 .220 .244 .292 .316 .340 .389 .452 .452 | .067 .075 .083 .100 .108 .116 .132 .148 .153 | .054 .062 .069 .084 .091 .098 .112 .127 .131 | .104 .116 .128 .152 .164 .176 .200 .224 .232 | .084 .095 .105 .126 .137 .148 .169 .190 .197 | .039 .043 .048 .054 .054 .060 .067 .075 .075 | .031 .035 .039 .045 .045 .050 .056 .064 .064 | .059 .067 .074 .088 .095 .103 .117 .132 .136 | .049 .055 .060 .072 .078 .084 .096 .108 .112 | .136 .158 .178 .192 .216 .209 .270 .305 .290 | .123 .145 .165 .179 .203 .196 .257 .292 .277 | .094 .085 .105 .119 .144 .137 .152 .188 .173 | .019 .028 .030 .031 .034 .033 .038 .042 .040 | 1 2 2 2 2 2-3* 3 3 3 | |
Pan Head
Machine Screws, Tapping Screws , Self Drilling Screws
SLOTTED, PHILLIPS
| Nominal Size | A | H | H1 | J | T | M | G | N | Phillips Driver Size | |||||||
| Head Diameter | Height of Head | Width of Slot | Depth of Slot | Dimensions of Recess | ||||||||||||
| Slotted | Recessed | Diameter | Depth | Width | ||||||||||||
| Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | |||
| 2 3 4 5 6 7 8 10 12 1/4 5/16 3/8 | .167 .193 .219 .245 .270 .296 .322 .373 .425 .492 .615 .740 | .155 .180 .205 .231 .256 .281 .306 .357 .407 .473 .594 .716 | .053 .060 .068 .075 .082 .089 .096 .110 .125 .144 .178 .212 | .045 .051 .058 .065 .072 .079 .085 .099 .112 .130 .162 .195 | .062 .071 .080 .089 .097 .106 .115 .133 .151 .175 .218 .261 | .053 .062 .070 .079 .087 .096 .105 .122 .139 .162 .203 .244 | .031 .035 .039 .043 .048 .048 .054 .060 .067 .075 .084 .094 | .023 .027 .031 .035 .039 .039 .045 .050 .056 .064 .072 .081 | .031 .036 .040 .045 .050 .054 .058 .068 .077 .087 .106 .124 | .022 .026 .030 .034 .037 .041 .045 .053 .061 .070 .085 .100 | .104 .112 .122 .158 .166 .176 .182 .199 .259 .281 .350 .389 | .091 .099 .109 .145 .153 .163 .169 .186 .246 .268 .337 .376 | .059 .068 .078 .083 .091 .100 .108 .124 .141 .161 .193 .233 | .017 .019 .019 .028 .028 .029 .030 .031 .034 .036 .169 .210 | 1 1 1 2 2 2 2 2 3 3 4 4 | |
Round Head
Machine Screws, Wood Screws* SLOTTED PHILLIPS
| Nominal Size | A | H | J | T | M | G | N | Phillips Driver Size | |||||
| Head Diameter | Height of Head | Width of Slot | Depth of Slot | Dimensions of Recess | |||||||||
| Diameter | Depth | Width | |||||||||||
| Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | ||
| 2 3 4 5 6 7* 8 9* 10 12 14* 1/4 5/16 3/8 1/2 | .162 .187 .211 .236 .260 .285 .309 .334 .359 .408 .457 .472 .590 .708 .813 | .146 .169 .193 .217 .240 .264 .287 .311 .334 .382 .429 .443 .557 .670 .766 | .069 .078 .086 .095 .103 .111 .120 .128 .137 .153 .170 .175 .216 .256 .355 | .059 .067 .075 .083 .091 .099 .107 .115 .123 .139 .155 .160 .198 .237 .332 | .031 .035 .039 .043 .048 .048 .054 .054 .060 .067 .075 .075 .084 .094 .106 | .023 .027 .031 .035 .039 .039 .045 .045 .050 .056 .064 .064 .072 .081 .091 | .048 .053 .058 .063 .068 .072 .077 .082 .087 .096 .106 .109 .132 .155 .211 | .037 .040 .044 .047 .051 .055 .058 .062 .065 .072 .080 .082 .099 .117 .159 | .100 .109 .118 .154 .162 .170 .178 .186 .195 .249 .265 .268 — — — | .087 .096 .105 .141 .149 .157 .165 .173 .182 .236 .252 .255 — — — | .053 .062 .072 .074 .084 .092 .101 .110 .119 .125 .142 .147 — — — | .017 .018 .019 .027 .027 029 .030 .030 .031 .032 .034 .034 — — — | 1 1 1 2 2 2 2 2 2-3* 3 3 3 — — — |
Truss Head
Machine Screws, Tapping Screws SLOTTED, PHILLIPS
| Nominal Size | A | H | J | T | M | G | N | Phillips Driver Size | |||||
| Head Diameter | Height of Head | Width of Slot | Depth of Slot | Dimensions of Recess | |||||||||
| Diameter | Depth | Width | |||||||||||
| Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | ||
| 4 6 8 10 1/4 5/16 3/8 | .257 .321 .384 .448 .573 .698 .823 | .241 .303 .364 .425 .546 .666 .787 | .069 .086 102 .118 .150 .183 .215 | .059 .074 .088 103 133 162 .191 | — .048 .054 .060 .075 .084 .094 | — .039 .045 .050 .064 .072 .081 | — .050 .058 .068 .087 .106 .124 | — .037 .045 .053 .070 .085 .100 | .112 .158 .173 .188 .263 .352 — | .099 145 .160 .175 .250 .339 — | .069 .084 .099 .115 .143 .193 — | .017 .027 .029 .030 .033 .059 — | 1 2 2 2 3 4 — |
Combination Drive Pan Head
G | H | J | A | M | T | F | N | ||||||
| Screw Size | Head Dimensions | Slot Dimemsions | Recess Dimensions | Driver Size | |||||||||
| Head Diam. | Head Height | Width | Depth | Width | Depth | Max. Rad | Min. Wing Width | Recess Penetration | |||||
| Max. | Min. | Max. | Min. | Max. | Min. | ||||||||
| 0 | .116 .104 | .044 .036 | — | — | — | — | .067 .054 | .039 .021 | .010 | .013 | .032 | .014 | 0 |
| 1 | .142 .130 | .053 .044 | — | — | — | — | .074 .061 | .045 .025 | .010 | .014 | .040 | .022 | 0 |
| 2 | .167 .155 | .062 .053 | .031 | .023 | .031 | .022 | .104 .091 | .059 .041 | .020 | .017 | .052 | .034 | 1 |
| 3 | .193 .180 | .071 .062 | .035 | .027 | .036 | .026 | .112 .099 | .065 .050 | .020 | .019 | .061 | .043 | 1 |
| 4 | .219 .205 | .080 .070 | .039 | .031 | .040 | .030 | .122 .109 | .078 .060 | .020 | .019 | .071 | .053 | 1 |
| 5 | .245 .231 | .089 .079 | .043 | .035 | .045 | .034 | .158 .145 | .083 .057 | .025 | .028 | .072 | .046 | 2 |
| 6 | .270 .256 | .097 .087 | .048 | .039 | .050 | .037 | .166 .153 | .091 .066 | .025 | .028 | .080 | .055 | 2 |
| 7 | .296 .281 | .106 .096 | .048 | .039 | .054 | .041 | .176 .163 | .100 .075 | .025 | .029 | .089 | .064 | 2 |
| 8 | .322 .306 | .115 .105 | .054 | .045 | .058 | .045 | .182 .169 | .108 .082 | .025 | .030 | .097 | .071 | 2 |
| 10 | .373 .357 | .133 .122 | .060 | .050 | .068 | .053 | .199 .186 | .124 .100 | .025 | .031 | .113 | .089 | 2 |
| 12 | .425 .407 | .151 .139 | .067 | .056 | .077 | .061 | .259 .246 | .141 .115 | .030 | .034 | .124 | .098 | 3 |
| 1/4 | .492 .473 | .175 .162 | .075 | .064 | .087 | .070 | .281 .268 | .161 .135 | .030 | .036 | .144 | .118 | 3 |
| 5/16 | .615 .594 | .218 .203 | .084 | .072 | .106 | .085 | .350 .337 | .193 .169 | .035 | .059 | .173 | .149 | 4 |
| 3/8 | .740 .716 | .261 .244 | — | — | — | — | .389 .376 | .233 .210 | .035 | .065 | .213 | .190 | 4 |
| 7/16 | .863 .838 | .304 .286 | — | — | — | — | .413 .400 | .259 .234 | .035 | .068 | .239 | .214 | 4 |
| 1/2 | .987 .958 | .348 .327 | — | — | — | — | .435 .422 | .280 .255 | .035 | .071 | .260 | .235 | 4 |
Pan Head Torx Drive
| Screw Size | Head Dimensions | Recess Dimensions | |||||
| D | H | R | G | (Fallaway) Penetration | |||
| Head Diameter | Head Height | Ref. | Gage Penetration | ||||
| Max. | Min. | Max. | Min. | Min. | Max. | ||
| 4 6 8 10 | .219 .270 .322 .372 | .205 .256 .306 .357 | .080 .097 .115 .133 | .070 .087 .105 .122 | .111 .132 .155 .178 | .035 .045 .055 .070 | .016 .020 .025 .025 |

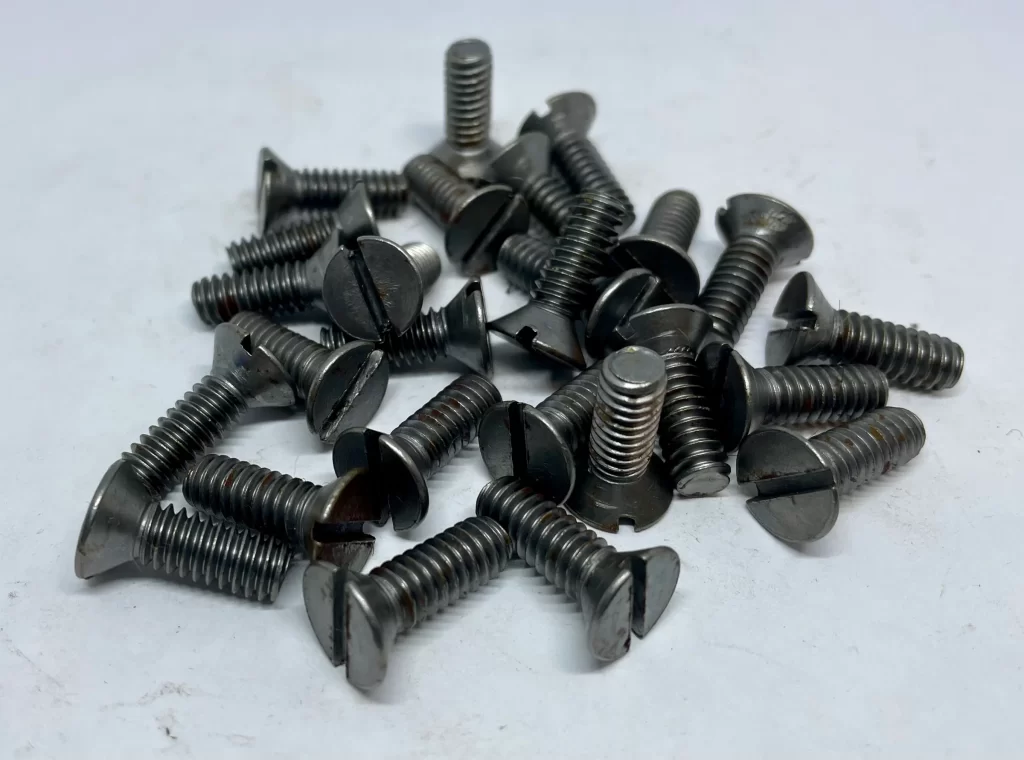

Common Fastener Materials
Fasteners are fabricated from a variety of materials. These options include metals and polymers. Stainless steel offers strength and corrosion resistance. While polymer options have less strength than stainless, they are a good choice for resisting chemicals. The most common materials are:
- Stainless steel
- Alloy steel
- Low carbon steel
- Medium carbon steel
- Titanium
- Polymers, such as nylon
Finish Options
The use of heat treatments and application of various finishes, also known as “plating,” affects the look and performance of fasteners. Finishes provide material stability and protect the fasteners from corrosion and rust. Below are some common heat treatment and finish benefits:
- Zinc coating – Most common, low cost, resists corrosion and rust
- Galvanized – Superior corrosion protection, anti-seize, higher upfront investment
- Stainless – Great for humid environments, strong, ideal for electrical or mechanical uses
- Black – Adds color, provides better grip, deflects light
Our Bolt Factory
MYWAY Services
MYWAY strictly complies with the requirements of the ISO9001 quality certification system, strictly controls quality, implements it at every level, and assigns responsibilities to everyone to ensure the healthy operation of the comprehensive system of design, production, sales, and after-sales service. In order to strengthen communication with users, better provide users with high-quality products, and better serve users with the brand, we have made the following commitments:
1. Products are designed and manufactured in strict accordance with standards. We produce non-standard products according to the drawings provided by customers.
2. Pre-sales service
Serving customers: product introduction, answers to technical questions, and engineering-assisted design.
3. Sales service
1). The products are based on the needs of user orders, with quality and delivery time as the premise.
2). During the use of the product, our company regularly organizes technical and quality inspection service personnel to visit and solicit feedback from users on the quality, usage status, improvement opinions and other aspects of the product, so as to further improve product quality.
4. After-sales service
1). If users have any problems or information when using our products, please report them back to the company in a timely manner so that the company can properly handle and improve them so that our products can better meet your requirements.
2). If the product does not work properly or is damaged due to quality problems during the warranty period, our company will be responsible for free repair or replacement. If the product is damaged or does not work properly due to improper use by the user, our company can provide repair services. If users need it, our company can provide users with free pre-sales and after-sales technical consultation.
.After-sales service. Users are required to fill in the product service and quality feedback information form and make appraisal opinions in order to improve the quality of MYWAY products and services.
FAQ
Q: Do bolts have different threads?
A:Bolts with coarse threads have a larger pitch (fewer threads per axial distance) compared to fine threads. A coarse threaded bolt is specified for most applications unless there is an overriding reason to use a fine threaded bolt (e.g. thorough thread adjustment is crucial for the application).
Q: What is difference between screw & bolt?
A: A bolt is meant to be used with a nut, and it is tightened by torquing the nut. A screw is designed to be used in either a preformed or threaded hole, or it is capable of forming its own threaded hole. A screw is designed to be tightened by torquing the head.
Q: Are bolts stronger than screws?
A: Yes, bolts provide greater holding strength than screws. This is partly due to the presence of the washer, which spreads out the load over a larger surface area. Because bolts offer increased strength, they work well for heavy-duty, load-bearing applications.
Q: Does every bolt need a nut?
A: Sometimes two bolts are used to prevent a beam from swiveling. Tap Bolt: This kind of bolt is completely threaded. It is used in a threaded or tapped hole and does not need a nut. A bolt is a type of fastener that often needs a nut that is tightened on the end and helps fasten several materials together.
Q: Why use screws instead of bolts?
A: Uses Screws and bolts are both used to fasten objects together, but bolts are for more heavy-duty projects. While bolts are the better choice for construction, building, or anchoring items, screws are best for home repairs, hanging objects, and DIY builds.
Q: What is the weakest part of a bolt?
A: The weakest part of any fastener is the deepest region of its threads (the root), and although the thread diameters in each case are the same the cold formed root diameter of a rolled thread may increase in strength.
Q: Are stainless steel bolts weaker than steel?
A: In fact, due to their low carbon content, many stainless steel alloys cannot be hardened through heat treatment. Therefore, when compared to regular steel, the stainless alloys used in bolts are slightly stronger than an un-hardened (grade 2) steel but significantly weaker than hardened steel fasteners.
Q: Can bolts be too long?
A: If the bolt is too long, its point may come into contact with the anchor’s expansion cone before the head of the bolt reaches the material to be fastened.
Q: Why are bolts so strong?
A: When a bolt is tightened the shank sustains a direct stress, due to the elongation strain, together with a torsional stress, due to the torque acting on the threads.
Q: Why are bolts better than rivets?
A: Bolts have largely replaced rivets due to their lower installation cost, ease of installation and maintenance. The two types of bolts commonly used in steel construction include high strength structural steel, and A307 bolts (common bolts).
Q: Do bolts weaken over time?
A: Nuts and bolts can loosen over time even if they are only subjected to translatory forces due to several factors: Vibration: Translatory forces can result in vibration in mechanical systems, especially in equipment or machinery that operates at high speeds or experiences frequent changes in direction or load.
Q: Do bolts need threaded holes?
A: Because metal is a stronger material, the screws thread cannot cut into it, so they must be inserted into a tapped or threaded hole. They both give extra grip to ensure that the screw stays in place. Both processes are used for a bolt, screw, or nut.
Q: Do bolts need washers?
A: Washers are used to distribute the load of a threaded fastener, such as a bolt or nut. Before a screw or bolt is driven into a surface, a washer may be placed in order to prevent looseness and provide protection. This also prevents the bolt head and nut from damaging the surfaces of the two fastened parts.
Q: Why does bolt have rubber?
A: Rubber spacers for bolts are especially useful for securing fasteners in high-vibration applications because the rubber will absorb the vibration to keep the fastener from loosening unexpectedly.
We’re professional bolt manufacturers and suppliers in China, specialized in providing high quality customized products with low price. We warmly welcome you to wholesale or buy discount bolt in stock here from our factory. Contact us for free sample.
What Is A Screws?
A screw is an externally helical threaded fastener capable of being tightened or released by a twisting force (torque) to the head. The most common uses of screws are to hold objects together and there are many forms for a variety of materials. Screws might be inserted into holes in assembled parts or a screw may form its own thread.The difference between a screw and a bolt is that the latter is designed to be tightened or released by torquing a nut.
Screws Production Process
The manufacturing process of nuts involves several steps. It begins with the selection of raw materials like steel, stainless steel, or brass, depending on the desired type of nut. The chosen material undergoes heating to make it more malleable, followed by forming or forging processes to create the basic shape of the nut. Threads are then cut or formed onto the nut using specialized machinery. After threading, nuts may undergo additional treatments such as heat treatment or surface finishing to enhance their strength, durability, or appearance. Quality control checks are performed throughout the manufacturing process to ensure that the nuts meet industry standards and specifications.
The blanks are then polished again prior to threading. The threads are usually produced via thread rolling; however, some are cut. The workpiece is then tumble finished with wood and leather media to do final cleaning and polishing. For most screws, a coating, such as electroplating with zinc (galvanizing) or applying black oxide, is applied to prevent corrosion.
Types And Applications Of Screws
Alike to the screw vs. bolt debate, there are often minimal differences between screw types. Denominations tend to describe the use or position of the screw as often as it describes individual screw characteristics. The following are the types of screws：
1.Chipboard Screws:Particle board screws are extremely similar to dry-wall screws, but smaller and lighter due to their decreased responsibility.
2.Drywall Screws:Dry wall screws are shortened screws meant to hold sheet rock to wall studs.
3.Self Tapping Screws:Also called sheet metal screws,have sharp cutting threads that cut into sheet metal, plastic or wood and fiberglass. They have a fully threaded shank and sometimes have a notched point at the tip to aid in chip removal during thread cutting.
4.Self Drill Screws:Self drill screws have a drill bit-like shank that can form a pretapped hole before the threads engage. They otherwise resemble sheet metal screws.
5.Hex Socket Screws:Hex socket screws, also known as Allen screws, are a popular type of fastener commonly used in mechanical and electronic applications. Featuring a hexagonal socket in the head, they are installed using a specialized wrench or driver that fits securely into the socket. This design ensures a strong and reliable grip, improving efficiency and reducing the risk of stripping or damage. Available in a variety of sizes and materials, including stainless steel and alloy steel, hex socket screws are an ideal choice for applications that require high torque or precise positioning. With their sturdy construction and easy installation, they are a versatile and reliable choice for a wide range of projects.
6.Slotted Screws:Slotted screws are essential hardware components that are designed with a single slot head for easy driving and removal. These screws are commonly used in woodworking, metalworking, and other DIY projects. Slotted screws come in various sizes and materials, including stainless steel, brass, and zinc-coated steel. Their unique design allows for quick and easy tightening or loosening with a flat-blade screwdriver or slotted screwdriver. They are reliable, durable, and resistant to corrosion, making them suitable for outdoor as well as indoor applications.
7.Slotted Set Screws:Set screws are headless, threaded rod segments that sit flushed with the penetrated material. Their most common use is in conjunction with shaft collars, or otherwise gripping an axis in perpendicular fashion. They are driven with recessed socket or flat heads.
8.Phillips Screws:Phillips screws, are a type of screw with a cross-shaped indentation on the head. This design allows for greater torque to be applied when tightening or loosening the screw, making it easier to work with compared to other screw types. Made from high-quality materials, such as stainless steel or brass, Phillips screws are durable and resistant to rust and corrosion. They are commonly used in a range of applications, from construction to DIY projects.
9.Torx Screws:Torx Screws are a type of screw with a six-pointed star-shaped pattern on the head, which allows for a more secure grip and reduces the likelihood of slipping. This makes Torx Screws ideal for use in various applications including electronics, automotive, and construction projects. Made from high-quality materials, Torx Screws are durable and resistant to wear and tear, ensuring long-lasting use. Additionally, their unique design allows for easier installation and removal, making them a popular choice among professionals and DIY enthusiasts alike. Whether you’re building a house or fixing a computer, Torx Screws are the reliable choice for your fastening needs.
10.Eye Screws:Eye screws have a looped head. They serve as an attachment point.
11.Shoulder Screws:Shoulder screws feature a cylindrical shoulder that separates the screw head from the threaded portion, providing a stable platform for precise positioning and alignment. Made from high-quality materials, these screws are durable, long-lasting, and resistant to corrosion and wear. They are commonly used for attaching gears, pulleys, and other components to shafts or axles in machinery and equipment. With their reliable and secure fastening capabilities, shoulder screws are a top choice for manufacturers and DIY enthusiasts alike.
12.Thumb Screws:Thumb screws have large diameter, knurled head which allows the screws to be torqued by hand.
13.Wing Screws:Wing screws have flanged heads allowing them to be tightened by hand.
14.Wood Screws:Wood screws have the intention of penetrating wood, but can be used in many easily-deformed materials. They are usually flathead, countersunk screws.
15.Lag Screws:Lag screws are self-tapping screws that meant to be applied with a wrench or socket. They are very strong, and are meant for a wide variety of materials.
Screw Standards
MYWAY produce screws in both imperial and metric units, and due to their explicit correspondence with nuts and pretapped holes, the units cannot be mixed. Furthermore, screws are produced with fine or coarse threads, which are a designation of the screw’s thread pitch–not the quality of the product. Coarse-thread screws are less susceptible to galling, thread crossing, and seizing, while fine-thread screws are less likely to loosen from jostling, and are more easily tapped and adjusted. For screws that cut their own threads in a soft material, there is no need to determine the thread type.
Imperial Screws
For imperial sizes, screw producers will provide a designated number or fractional inch for the dimension of the screw. North American countries follow this system, called the Unified Thread Standard. Also included will be a “threads per inch” (TPI) count which will indicate a course or fine thread.
Metric Screws
ISO, JIS, and DIN standards are based upon the metric system and are closely related (ISO guideline 261). Most hardware measured in metric units is subject to Society of Automotive Engineers (SAE) edict as well. These standards are common in the majority of the world, and speculation exists that this may become a global hardware standard. The threads on screws can be available in both fine and course pitch configurations.
Screws Operation
The parts on screws can be identified rather easily. The head is the section of the screw with the largest diameter and the imprint of a screw drive. This also provides a load surface once in use. The shank of the screw contains the threaded section (shoulder screws being an exception) and is responsible for the alignment of the workpieces and screw. Finally, the end of the screw that does not have the head is known as a chamfer. This tapered end allows the screw to be inserted into pieces with less resistance than the screw’s full diameter. Even on machine screws, there will be a beveled edge to assist penetration.
Screws will also contain a shaped head or shaped recess so a screw driver can provide torque in the direction of the threads. While female fastener/male tool configurations are most common, male fastener/female tool variations exist. Common screw drives are pictured below:
Screw Head Styles
Screw Tip Styles
●Die points have a slight chamfer, aiding the insertion into predrilled holes.
●Dog points have an extended, unthreaded chamfer to prevent stripping fine threads.
●Rolled points have a thread roll-over on the first 540° of the helix.
●A pinch point provides a pilot action when penetrating several thin materials.
●A nail point is used to impinge or lock against wood materials.
●A cupped point increases its locking actuation under pressure.
●Round points provide gripping ability but do not ‘cut’ the way other screw tips do.
●A cone point is very sharp and will provide an accurate pilot for threading.
●Type-A points are best utilized as replacement screws or with predrilled holes in thin metals.
●Type-B points are similar to Type A, but are meant for thick metals.
●Type-AB combines the precision point of Type A with the ruggedness of Type B.
●Type-C points are for use in heavy sheet metal and require a high driving torque.
●Type-U points are best employed by hammering or driving.
●A type-F point has many cutting edges for tapping in large-gauge sheet metal.
●Type-FZ points have many cutting edges for tapping in plastic and other soft materials.
●Type 1 points have a groove in the chamfer for general utility.
●Type 17 points have a large groove in the shank for removing wood debris.
●Type 23 points are similar to type 17, but have a finer thread and maximize their cutting surface.
●Type 25 points are a hybrid between types 17 and 23 with a coarse thread.
●Self-drilling screw tips are self-tapping and do not require predrilling.
What Materials Are Screws Made Of?
●Aluminum screws are light, resistant to oxidation, thermal and electrical conducive, and easy to manufacture.
●Brass screws are strong, conductive, and corrosion resistant, with low magnetic permeability.
●Copper alloy screws have good load capacity, wear resistance, and are suitable for use near magnets.
●Molybdenum screws have a very high melting point and are exceptionally strong.
●Plastic screws are inexpensive and corrosion resistant for light loads. They are common for applications near water, such as pools.
●Steel screws are produced of strong, carbonated iron. Uncoated steel is vulnerable to corrosion.
●Hardened steel screws on hardening methods to produce a stronger, but more brittle, version of steel.
●Stainless steel screws are chemical and corrosion resistant with an appealing finish. They cannot be hardened like carbon steel.
●Screws consisting of superalloys exhibit good mechanical strength, surface stability, corrosion resistance, and resistant to creep at high ●Temperatures. Common super alloys include Hastelloy®, Inconel®, Incoloy®, and Monel®.
●Titanium screws are hard and strong, light, and corrosion resistant. When alloyed with other metals, it increases strength and durability.
What Are The Surface Treatments Of Screws？
Finishes applied to the base metal of the screw enhance the durability and corrosion resistance of the material.
01
Black oxide finishes do not enlarge the dimensions of the screw and is a processed black rust. It is mostly used for aesthetic purposes.
02
Black oxide finishes do not enlarge the dimensions of the screw and is a processed black rust. It is mostly used for aesthetic purposes.
03
Zinc plated coatings act as a sacrificial anode, protecting the underlying metal. It is applied as a fine white dust.
04
Other coatings like galvanization and phosphating are common for particular types of hardware, like screws meant for fence or window applications.
Screw Dimensions
The chamfer angle on the underside of the head, known as the countersink, mates with a conical recess in the workpiece so the head may rest flush with the workpiece surface. ISO metric countersinks are usually 90°, while imperial screws typically have a countersink of 82°. Common countersink angles include:
Precautions For Use And Maintenance Of Screws
Installation of screws
Before installing the screws, you need to select the appropriate screws. Then, insert the screws into the two parts you want to join. When inserting screws, it should be noted that the length of the screws should be longer than the thickness of the connector to ensure that the screw connectors can be tightly connected.
Rotation of screws
After inserting the screw into the connection, you need to turn the screw. The way to turn the screw is to use a wrench or wrench head. The following points should be noted when turning the screw:
●The direction of rotation should be the same as the direction of the thread.
●Apply appropriate force so that the screw can rotate normally.
●Do not use excessive force to turn the screw, otherwise the threads and connections may be damaged.
●When tightening screws, select an appropriate wrench head according to the thread type.
Removal of screws
Screws need to be removed after being used for a period of time. The primary method of removing screws is with a wrench or wrench head. Pay attention to the following points when removing screws:
●The disassembly direction should be opposite to the thread direction.
●Apply appropriate force so that the screws can be removed normally.
●Do not use excessive force to remove the screws, otherwise the threads and connections may be damaged.
Removal of screws
Screws need maintenance after being used for a period of time. The maintenance of screws mainly includes the following aspects:
●Clean screws: During use, screws will generate dust and dirt. If not cleaned in time, the screws may rust, affecting their service life. Therefore, clean the screws in time before and after using them.To clean screws, use detergent and a soft cloth. First, soak the screws in detergent and wipe the surface of the screws with a soft cloth.
●Apply lubricating oil: When assembling and disassembling screws, apply an appropriate amount of lubricating oil to reduce friction between the screws and the connecting parts. The selection of lubricating oil should be based on the material of the screw and the use environment.
●Use an appropriate wrench: When using a wrench, choose an appropriate size to avoid damaging the screw or the wrench itself when applying force.
Store screws
When storing screws, pay attention to the following points:
●Moisture-proof storage: Screws are made of metal and are prone to moisture and rust. Therefore, screws should be stored in a dry and ventilated environment and not exposed to humid air to prevent moisture from intruding into the interior of the screws.
●Avoid direct sunlight: Keep screws out of direct sunlight, as sunlight can damage the grease and coating on the surface of the screws, leading to rust.
●Classified storage: Screws can be classified according to different materials and sizes to facilitate future use and management.
●Safe storage: When storing screws, avoid heavy pressure and collision to avoid damaging the threads.
The shelf life of screws
The shelf life of screws refers to the time that the screws can be used normally. Under the premise of normal storage, it is generally about 2-3 years. However, the shelf life of screws will also be affected by the external environment. If the screws are exposed to harsh environments such as moisture, high temperature, or acid and alkali for a long time, the shelf life will be greatly shortened.
Meaning
Although screws are small fasteners, they play an important role in many fields. Only correct storage and maintenance methods can extend the service life of screws and reduce unnecessary material waste and labor and material costs. At the same time, it can also reduce the generation of fastener waste. Fasteners can seem like a small element in construction, but their environmental impact can be significant. Not only does the production process of manufacturing fasteners require high energy consumption, but the disposal of fasteners (from rust or corroding) contributes to landfill waste.
About Screws Packaging And Transportation
Packaging Materials
Choose materials with good moisture-proof, shock-proof, anti-corrosion and sealing properties, generally choose cartons, wooden boxes, plastic packaging and other materials.
Packaging Specifications
In compliance with relevant national standards and regulations, packaging specifications should be reasonably designed based on the size, weight, material, quantity, etc. of the product to avoid collisions and extrusions during transportation.
Packaging Form
There are two forms of single product packaging and batch packaging. Single product packaging is generally suitable for small batches of products, and batch packaging is suitable for large quantities of products.
Logo
Mark the product name, quantity, specifications, moisture-proof grade, shelf life and other information on the packaging.
Save
Avoid contact with toxic and flammable substances. The storage environment should be kept dry, ventilated, and clean. The storage location should be set up reasonably to avoid damage and contamination.
Transportation Method
It can be carried out through various modes of transportation such as road, railway, aviation, and sea transportation, among which road and sea transportation are the most common. We are close to Shanghai Port and Ningbo Port, most customers choose Shanghai Port. We pursue smooth transportation, avoid bumps and collisions, and do our best to ensure that products are delivered to customers in good condition and on time.
Temperature and Humidity Adjustment
Try to maintain a suitable temperature and humidity environment to avoid being affected by excessively high or low temperature and humidity, which may affect the quality and life of the product.
Safety Guarantee
Take necessary safety protection measures during transportation to avoid dangerous situations such as fires, explosions, accidents, etc., and ensure that they are not damaged or lost during transportation.
Insurance Requirements
In order to ensure transportation safety and improve transportation insurance coverage, you can purchase cargo transportation insurance when purchasing our high-value fastener products to avoid accidental loss or damage.
MYWAY Metal Screw Factory
MYWAY Services
MYWAY strictly complies with the requirements of the ISO9001 quality certification system, strictly controls quality, implements it at every level, and assigns responsibilities to everyone to ensure the healthy operation of the comprehensive system of design, production, sales, and after-sales service. In order to strengthen communication with users, better provide users with high-quality products, and better serve users with the brand, we have made the following commitments:
1. Products are designed and manufactured in strict accordance with standards. We produce non-standard products according to the drawings provided by customers.
2. Pre-sales service
Serving customers: product introduction, answers to technical questions, and engineering-assisted design.
3. Sales service
1). The products are based on the needs of user orders, with quality and delivery time as the premise.
2). During the use of the product, our company regularly organizes technical and quality inspection service personnel to visit and solicit feedback from users on the quality, usage status, improvement opinions and other aspects of the product, so as to further improve product quality.
4. After-sales service
1). If users have any problems or information when using our products, please report them back to the company in a timely manner so that the company can properly handle and improve them so that our products can better meet your requirements.
2). If the product does not work properly or is damaged due to quality problems during the warranty period, our company will be responsible for free repair or replacement. If the product is damaged or does not work properly due to improper use by the user, our company can provide repair services. If users need it, our company can provide users with free pre-sales and after-sales technical consultation.
.After-sales service. Users are required to fill in the product service and quality feedback information form and make appraisal opinions in order to improve the quality of MYWAY products and services.
FAQ
Q: What is the most popular screw type?
A: Phillips screw drive.The Phillips screw drive is among the most widespread screw drive type used today, recognised for its cross-shaped recess and suitability for automated manufacturing and general assembly.
Q: What is the strongest type of screw?
A: As far as fasteners go, several heavy-duty industrial bolts outclass the rest. However, in the world of screws, the self-tapping screw is often seen as one of the strongest and most versatile options.
Q: What are the best screws for heavy load?
A: Masonry Screws.They’re suitable for heavy-duty applications, making them a stronger, more robust alternative to other screws. With a long body and deep, full thread, masonry screws offer superior security when installed.
Q: What are heavy-duty screws called?
A: Description: Lag screws, also known as lag bolts, are large screws with a coarse thread and a hex head, used for heavy-duty fastening into wood or metal.
Q: What is the best screw for hanging something heavy?
A: Screw-In Anchors.Attach the item by driving a #6 or #8 screw into the anchor hole. Best for: Heavy picture frames, bulletin boards, smoke alarms, door chimes, lightweight shelving, wall-mounted light fixtures, wall-mounted mirrors on drywall.
Q: What is a screw with no head called?
A: Set screws are most often headless (aka blind), meaning that the screw is fully threaded and has no head. A blind set screw, known in UK as a grub screw, is almost always driven with an internal wrenching drive, such as a hex Allen key.
Q: What screw has the most torque?
A: Torx. Torx screws feature a six-pointed star-shaped recess with rounded edges. Also known as a star drive, the Torx drive provides higher torque than many other screw drive types, while reducing the risk of cam-out and adding an element of security.
Q: How much weight can one screw hold?
A: Flat mounted hooks and anchors may be able to hold up to 50 pounds, while drywall screws can hold about 20 pounds of weight. To support up to 100 pounds on drywall, make sure to find the wall studs, then mount the object using metal anchors and screws. Screws should penetrate wood studs at least 1.5 inches.
Q: What screw to put into a stud?
A: Coarse drywall screws feature coarse threads to secure drywall boards to studs. Fine drywall screws feature smaller heads and are used to secure drywall to metal studs. Self-drilling screws and pan-head screws can be used with metal studs or frames.
Q: What are lag screws?
A: Lag screws are some of the toughest types of screws out there. Also called lag bolts, lag screws are generally used to connect heavy lumber and other materials that bear an intense load. They’re different from other more common screws such as wood screws, sheet metal screws and self-drilling screws.
Q: Is a thicker screw stronger?
A: Screw size doesn’t necessarily determine screw strength. Finely threaded screws are actually much stronger. In fact, a 1/4 UNF thread is roughly 14% stronger than a UNC thread, even if the screws are the same size.
Q: Can I drill a screw straight into a wall?
A: Screws, of course, are typically inserted directly into a wall. You may have to drill pilot holes beforehand. Regardless, when using screws to secure an object to a wall, you’ll probably drive them directly into the wall itself. There are instances, however, in which you may want to use drywall anchors.
Q: What screws don't strip?
A: A square drive and a Phillips drive offer four points of contact, making them less likely to strip than a slotted screw. Hex and Torx screws both offer six points of contact, reducing the likelihood of stripping compared to Phillips and square drives.
Q: How does a sharp screw work?
A: Self-tapping screws come with a sharp, piercing tip or a flat, blunt tip. The sharp-tipped screws are designed for drilling their own hole into softer materials such as wood and plastic so they don’t need a pilot hole. The advantage of the flat-tipped screw is that it won’t get stuck in the material and break off.
We’re professional bolt manufacturers and suppliers in China, specialized in providing high quality customized products with low price. We warmly welcome you to wholesale or buy discount bolt in stock here from our factory. Contact us for free sample.
