PTFE Carriage Bolt Half Thread DIN603 Teflon
PTFE Carriage Bolt Half Thread DIN603 Teflon
Carriage Bolt Half Thread DIN603 Teflon: Superior Corrosion Resistance for Enhanced Performance When it comes to securing heavy-duty structures, nothing does it better than carriage bolts. These specialized fasteners come in varying lengths and diameters, and can be customized to suit specific applications. One such variation is the half-thread carriage bolt, which offers superior gripping power without compromising on strength.
Description
About Carriage Bolts DIN603
A carriage bolt is a type of threaded fastener that is used to join two pieces of wood or other materials together. It gets its name from its original use – to attach the wheels of a carriage to its axles.
The Carriage Bolt Half Thread DIN603 Teflon has a partially threaded shank, meaning the top half is smooth and the bottom half is threaded. This design allows for a secure grip on the material being fastened, while also providing a neat and finished appearance.
Teflon is a synthetic material that is known for its non-stick and heat-resistant properties. When applied to the surface of the carriage bolt, it creates a thin layer that protects against corrosion, scratches, and wear and tear.
The benefits of using a carriage bolt with a Teflon coating are numerous. Firstly, it increases the lifespan of the bolt, ensuring that it continues to function effectively over time. Secondly, it reduces the likelihood of rust and other forms of corrosion, which can weaken the bolt and cause it to fail.
In addition, the Teflon coating makes the bolt easier to install and remove. It creates a smooth surface that allows the bolt to glide in and out of the material without getting stuck or causing damage. This is especially useful if you need to remove the bolt to make adjustments or repairs.
So, there you have it – the Carriage Bolt Half Thread DIN603 Teflon. A strong and durable choice for your fastening needs, with added protection from Teflon coating. Its partially threaded shank and non-stick properties make it a versatile and reliable option for any application.
Carriage Bolt DIN603 Dimensions

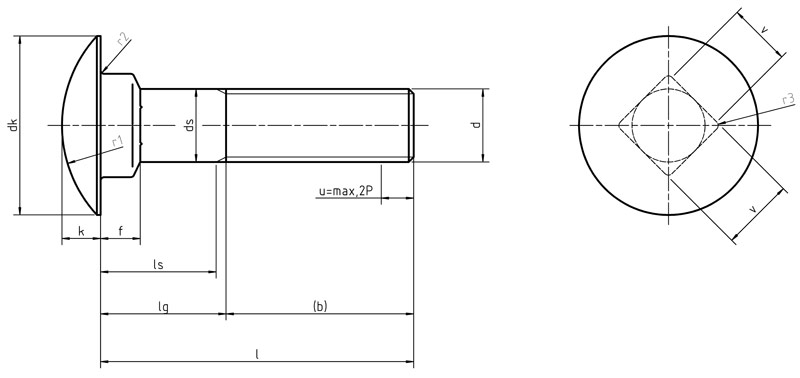

DIN 603 – Mushroom head square neck bolts
Current norm: DIN 603
Equivalent norms: ISO 8677; CSN 021319; PN 82406; UNI 5731
Table according to DIN 603:
dimensions in mm
| Thread d | M5 | M6 | M8 | M10 | M12 | M16 | M20 | |
| P | 0,8 | 1 | 1,25 | 1,5 | 1,75 | 2 | 2,5 | |
| b | l < 125mm | 16 | 18 | 22 | 26 | 30 | 38 | 46 |
| 125 < l < 200mm | 22 | 24 | 28 | 32 | 36 | 44 | 52 | |
| l > 200mm | – | – | 41 | 45 | 49 | 57 | 65 | |
| dk | max. | 13,55 | 16,55 | 20,65 | 24,65 | 30,65 | 38,8 | 46,8 |
| min. | 12,45 | 15,45 | 19,35 | 23,35 | 29,35 | 37,2 | 45,2 | |
| ds | max. | 5 | 6 | 8 | 10 | 12 | 16 | 20 |
| min. | 4,52 | 5,52 | 7,42 | 9,42 | 11,3 | 15,3 | 19,16 | |
| f | max. | 4,1 | 4,6 | 5,6 | 6,6 | 8,75 | 12,9 | 15,9 |
| min. | 2,9 | 3,4 | 4,4 | 5,4 | 7,25 | 11,1 | 14,1 | |
| k | max. | 3,3 | 3,88 | 4,88 | 5,38 | 6,95 | 8,95 | 11,05 |
| min. | 2,7 | 3,12 | 4,12 | 4,62 | 6,05 | 8,05 | 9,95 | |
| r1 | approx. | 10,7 | 12,6 | 16 | 19,2 | 24,1 | 29,3 | 33,9 |
| r2 | max. | 0,5 | 0,5 | 0,5 | 0,5 | 1 | 1 | 1 |
| r3 | max. | 0,75 | 0,9 | 1,2 | 1,5 | 1,8 | 2,4 | 3 |
| v | max. | 5,48 | 6,48 | 8,58 | 10,58 | 12,7 | 16,7 | 20,84 |
| min. | 4,52 | 5,52 | 7,42 | 9,42 | 11,3 | 15,3 | 19,16 | |
Tab 2.
| l | M5 | M6 | M8 | M10 | M12 | M16 | M20 | |||||||||
| nominal size | min. | max. | ls min. | lg max. | ls min. | lg max. | ls min. | lg max. | ls min. | lg max. | ls min. | lg max. | ls min. | lg max. | ls min. | lg max. |
| 16 | 15,1 | 16,9 | – | 8 | – | 10 | ||||||||||
| 20 | 18,95 | 21,05 | – | 8 | – | 10 | – | 12 | – | 14 | ||||||
| 25 | 23,95 | 26,05 | – | 8 | – | 10 | – | 12 | – | 14 | ||||||
| 30 | 28,95 | 31,05 | – | 18 | – | 10 | – | 12 | – | 14 | – | 18 | ||||
| 35 | 33,75 | 36,25 | 15 | 19 | 12 | 17 | – | 12 | – | 14 | – | 18 | ||||
| 40 | 38,75 | 41,25 | 20 | 24 | 17 | 22 | 11,75 | 18 | – | 14 | – | 18 | ||||
| 45 | 43,75 | 46,25 | 25 | 29 | 22 | 27 | 16,75 | 23 | 11,5 | 19 | – | 18 | ||||
| 50 | 48,75 | 51,25 | 30 | 34 | 27 | 32 | 21,75 | 28 | 16,5 | 24 | – | 18 | ||||
| 55 | 53,5 | 56,5 | 35 | 39 | 32 | 37 | 26,75 | 33 | 21,5 | 29 | 16,25 | 25 | – | 23 | ||
| 60 | 58,5 | 61,5 | 40 | 44 | 37 | 42 | 31,75 | 38 | 26,5 | 34 | 21,25 | 30 | – | 23 | ||
| 65 | 63,5 | 66,5 | 45 | 49 | 42 | 47 | 36,75 | 43 | 31,5 | 39 | 26,75 | 35 | 17 | 27 | ||
| 70 | 68,5 | 71,5 | 50 | 54 | 47 | 52 | 41,75 | 48 | 36,5 | 44 | 31,25 | 40 | 22 | 32 | – | 28,5 |
| 80 | 78,5 | 81,5 | 60 | 64 | 57 | 62 | 51,75 | 58 | 46,5 | 54 | 41,25 | 50 | 32 | 42 | 21,5 | 34 |
| 90 | 88,25 | 91,75 | 67 | 72 | 61,75 | 68 | 56,5 | 64 | 51,25 | 60 | 42 | 52 | 31,5 | 44 | ||
| 100 | 98,25 | 101,75 | 77 | 82 | 71,75 | 78 | 66,5 | 74 | 61,25 | 70 | 52 | 62 | 41,5 | 54 | ||
| 110 | 108,25 | 111,75 | 87 | 92 | 81,75 | 88 | 76,5 | 84 | 71,25 | 80 | 62 | 72 | 51,5 | 64 | ||
| 120 | 118,25 | 121,75 | 97 | 102 | 91,75 | 98 | 86,5 | 94 | 81,25 | 90 | 72 | 82 | 61,5 | 74 | ||
| 130 | 128 | 132 | 101 | 106 | 95,75 | 102 | 90,5 | 98 | 85,25 | 94 | 76 | 86 | 65,5 | 78 | ||
| 140 | 138 | 142 | 111 | 116 | 105,75 | 112 | 108,5 | 108 | 95,25 | 104 | 86 | 96 | 75,5 | 8 | ||
| 150 | 148 | 152 | 121 | 126 | 115,75 | 122 | 110,5 | 118 | 105,25 | 114 | 96 | 106 | 85,5 | 98 | ||
| 160 | 156 | 164 | 120,5 | 128 | 115,25 | 124 | 106 | 116 | 95,5 | 108 | ||||||
| 180 | 176 | 184 | 140,5 | 148 | 135,25 | 144 | 126 | 136 | 115,5 | 128 | ||||||
| 200 | 195,4 | 204,6 | 160,5 | 168 | 155,25 | 164 | 146 | 156 | 135,5 | 148 | ||||||
