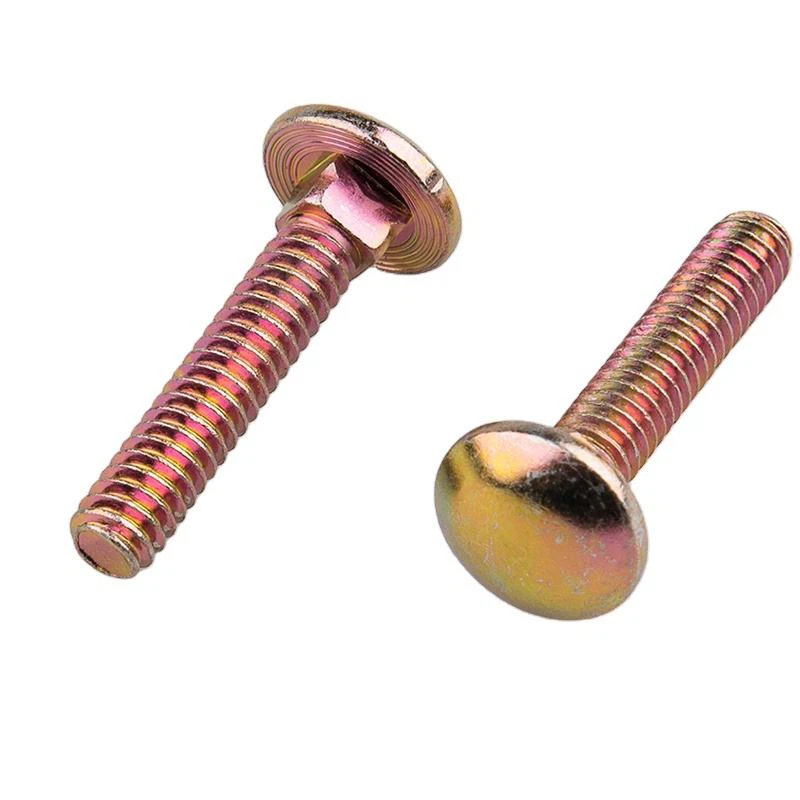

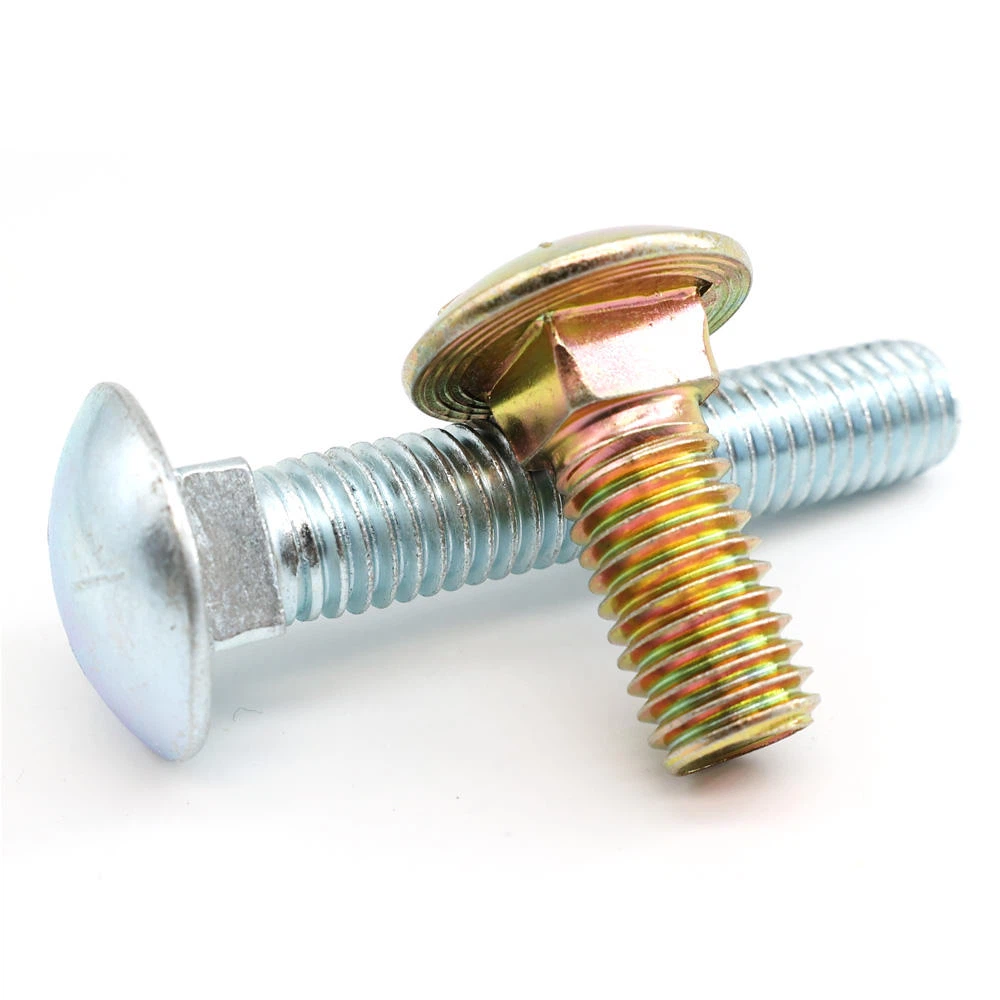

Colour Zinc Carriage Bolt Half Thread DIN603
Colour Zinc Carriage Bolt Half Thread DIN603
Carriage Bolt Half Thread DIN603 Colour Zinc is a popular choice for fastening applications in various industries. This type of bolt has a large, round head and a square shank that prevents it from turning while being tightened. The half thread design allows for flexibility in application as it can be used with a nut or threaded into a substrate. The Colour Zinc coating provides an added layer of protection against corrosion.
Description
About Carriage Bolts DIN603
One such carriage bolt is the Half Thread DIN603 Colour Zinc – a versatile and reliable fastener that is ideal for various applications.
The Half Thread DIN603 Colour Zinc carriage bolt is a high-quality fastener designed with strength and durability in mind. It features a partial thread on its shank, allowing it to grip the material better for enhanced stability. The head of the bolt is domed with a square underside that prevents the bolt from being pulled out once inserted into the material.
One aspect that makes the Half Thread DIN603 Colour Zinc carriage bolt stand out is its colour zinc finish. This coating provides the bolt with a high level of corrosion resistance, making it perfect for outdoor applications where exposure to rain, snow, and other environmental elements is a concern.
Furthermore, the Half Thread DIN603 Colour Zinc carriage bolt is designed to meet the highest industry standards. It conforms to the DIN603 specification, which is an international standard for carriage bolts that defines their physical and mechanical properties, including the size and thread pitch.
Additionally, installing the Half Thread DIN603 Colour Zinc carriage bolt is a breeze. All you need is a wrench or a pair of pliers to tighten the bolt, and you’re good to go. The square neck under the head of the bolt ensures that it doesn’t spin while tightening, providing a secure and stable fixing.
In conclusion, the Half Thread DIN603 Colour Zinc carriage bolt is an excellent choice for various applications, including construction, DIY, and automotive projects. Its high-quality construction, colour zinc finish, and compliance with DIN603 standards make it a reliable fastener that you can rely on to provide a secure and stable fixing.
Carriage Bolt DIN603 Dimensions
DIN 603 – Mushroom head square neck bolts
Current norm: DIN 603
Equivalent norms: ISO 8677; CSN 021319; PN 82406; UNI 5731

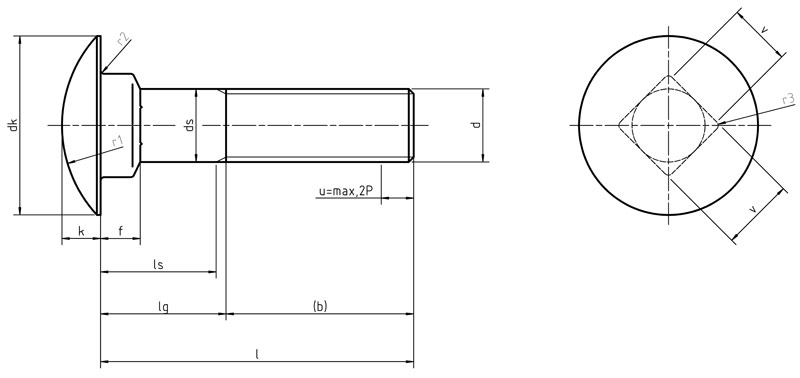

Table according to DIN 603:
dimensions in mm
| Thread d | M5 | M6 | M8 | M10 | M12 | M16 | M20 | |
| P | 0,8 | 1 | 1,25 | 1,5 | 1,75 | 2 | 2,5 | |
| b | l < 125mm | 16 | 18 | 22 | 26 | 30 | 38 | 46 |
| 125 < l < 200mm | 22 | 24 | 28 | 32 | 36 | 44 | 52 | |
| l > 200mm | – | – | 41 | 45 | 49 | 57 | 65 | |
| dk | max. | 13,55 | 16,55 | 20,65 | 24,65 | 30,65 | 38,8 | 46,8 |
| min. | 12,45 | 15,45 | 19,35 | 23,35 | 29,35 | 37,2 | 45,2 | |
| ds | max. | 5 | 6 | 8 | 10 | 12 | 16 | 20 |
| min. | 4,52 | 5,52 | 7,42 | 9,42 | 11,3 | 15,3 | 19,16 | |
| f | max. | 4,1 | 4,6 | 5,6 | 6,6 | 8,75 | 12,9 | 15,9 |
| min. | 2,9 | 3,4 | 4,4 | 5,4 | 7,25 | 11,1 | 14,1 | |
| k | max. | 3,3 | 3,88 | 4,88 | 5,38 | 6,95 | 8,95 | 11,05 |
| min. | 2,7 | 3,12 | 4,12 | 4,62 | 6,05 | 8,05 | 9,95 | |
| r1 | approx. | 10,7 | 12,6 | 16 | 19,2 | 24,1 | 29,3 | 33,9 |
| r2 | max. | 0,5 | 0,5 | 0,5 | 0,5 | 1 | 1 | 1 |
| r3 | max. | 0,75 | 0,9 | 1,2 | 1,5 | 1,8 | 2,4 | 3 |
| v | max. | 5,48 | 6,48 | 8,58 | 10,58 | 12,7 | 16,7 | 20,84 |
| min. | 4,52 | 5,52 | 7,42 | 9,42 | 11,3 | 15,3 | 19,16 | |
Tab 2.
| l | M5 | M6 | M8 | M10 | M12 | M16 | M20 | |||||||||
| nominal size | min. | max. | ls min. | lg max. | ls min. | lg max. | ls min. | lg max. | ls min. | lg max. | ls min. | lg max. | ls min. | lg max. | ls min. | lg max. |
| 16 | 15,1 | 16,9 | – | 8 | – | 10 | ||||||||||
| 20 | 18,95 | 21,05 | – | 8 | – | 10 | – | 12 | – | 14 | ||||||
| 25 | 23,95 | 26,05 | – | 8 | – | 10 | – | 12 | – | 14 | ||||||
| 30 | 28,95 | 31,05 | – | 18 | – | 10 | – | 12 | – | 14 | – | 18 | ||||
| 35 | 33,75 | 36,25 | 15 | 19 | 12 | 17 | – | 12 | – | 14 | – | 18 | ||||
| 40 | 38,75 | 41,25 | 20 | 24 | 17 | 22 | 11,75 | 18 | – | 14 | – | 18 | ||||
| 45 | 43,75 | 46,25 | 25 | 29 | 22 | 27 | 16,75 | 23 | 11,5 | 19 | – | 18 | ||||
| 50 | 48,75 | 51,25 | 30 | 34 | 27 | 32 | 21,75 | 28 | 16,5 | 24 | – | 18 | ||||
| 55 | 53,5 | 56,5 | 35 | 39 | 32 | 37 | 26,75 | 33 | 21,5 | 29 | 16,25 | 25 | – | 23 | ||
| 60 | 58,5 | 61,5 | 40 | 44 | 37 | 42 | 31,75 | 38 | 26,5 | 34 | 21,25 | 30 | – | 23 | ||
| 65 | 63,5 | 66,5 | 45 | 49 | 42 | 47 | 36,75 | 43 | 31,5 | 39 | 26,75 | 35 | 17 | 27 | ||
| 70 | 68,5 | 71,5 | 50 | 54 | 47 | 52 | 41,75 | 48 | 36,5 | 44 | 31,25 | 40 | 22 | 32 | – | 28,5 |
| 80 | 78,5 | 81,5 | 60 | 64 | 57 | 62 | 51,75 | 58 | 46,5 | 54 | 41,25 | 50 | 32 | 42 | 21,5 | 34 |
| 90 | 88,25 | 91,75 | 67 | 72 | 61,75 | 68 | 56,5 | 64 | 51,25 | 60 | 42 | 52 | 31,5 | 44 | ||
| 100 | 98,25 | 101,75 | 77 | 82 | 71,75 | 78 | 66,5 | 74 | 61,25 | 70 | 52 | 62 | 41,5 | 54 | ||
| 110 | 108,25 | 111,75 | 87 | 92 | 81,75 | 88 | 76,5 | 84 | 71,25 | 80 | 62 | 72 | 51,5 | 64 | ||
| 120 | 118,25 | 121,75 | 97 | 102 | 91,75 | 98 | 86,5 | 94 | 81,25 | 90 | 72 | 82 | 61,5 | 74 | ||
| 130 | 128 | 132 | 101 | 106 | 95,75 | 102 | 90,5 | 98 | 85,25 | 94 | 76 | 86 | 65,5 | 78 | ||
| 140 | 138 | 142 | 111 | 116 | 105,75 | 112 | 108,5 | 108 | 95,25 | 104 | 86 | 96 | 75,5 | 8 | ||
| 150 | 148 | 152 | 121 | 126 | 115,75 | 122 | 110,5 | 118 | 105,25 | 114 | 96 | 106 | 85,5 | 98 | ||
| 160 | 156 | 164 | 120,5 | 128 | 115,25 | 124 | 106 | 116 | 95,5 | 108 | ||||||
| 180 | 176 | 184 | 140,5 | 148 | 135,25 | 144 | 126 | 136 | 115,5 | 128 | ||||||
| 200 | 195,4 | 204,6 | 160,5 | 168 | 155,25 | 164 | 146 | 156 | 135,5 | 148 | ||||||
